ELASTIC Doming Resin 3-18-200 UV++

Product detailed description

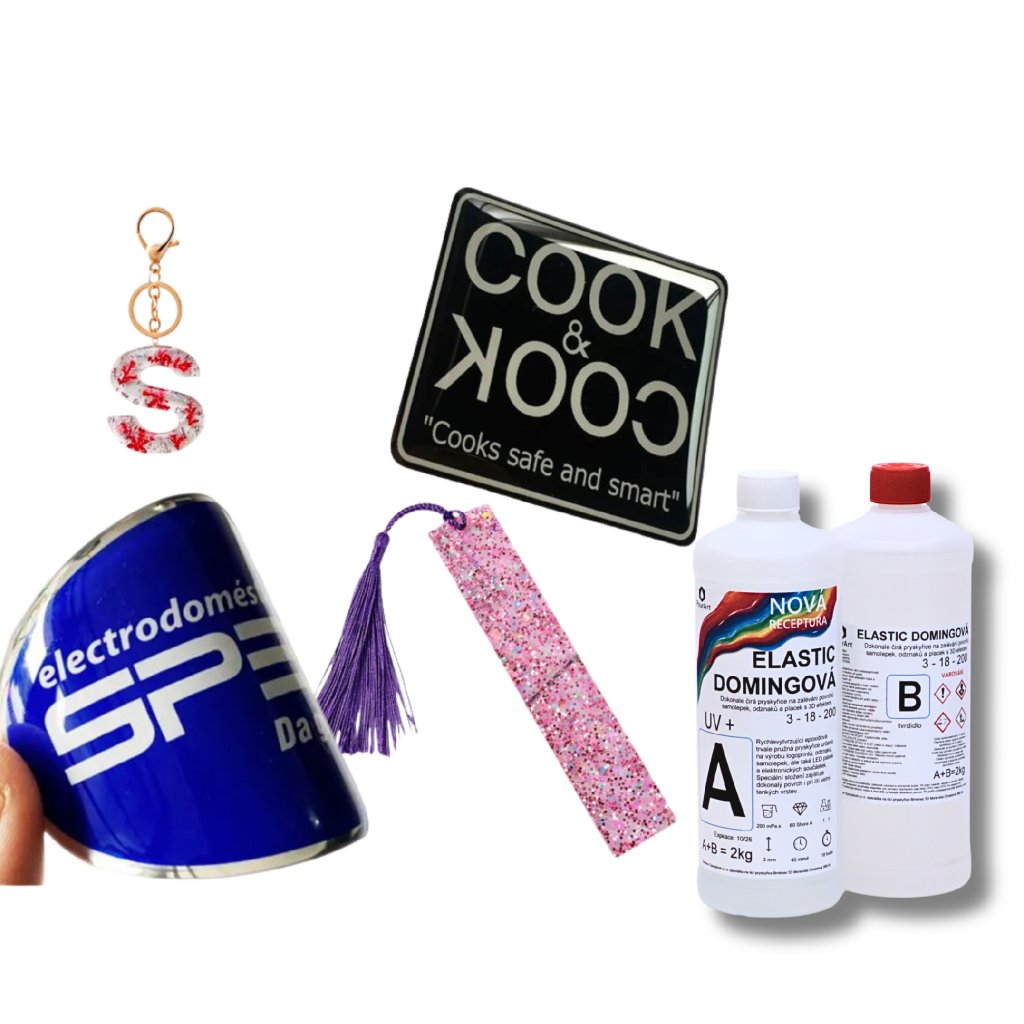

ELASTIC 3-18-200 UV++ doming resin is a special epoxy resin designed for thin, domed layers with a 3D effect. After curing, it remains flexible and elastic, making it suitable for applications where regular "hard" resin cracks easily – for example, on stickers, badges, magnets, or bookmarks.

What is ELASTIC doming resin suitable for

Thanks to its low recommended casting height and elasticity, this resin is ideal for:

• products up to a cast layer height of approx. 3 mm,
• badges with doming and 3D effect,
• buttons/pins with a convex, glossy surface,
• stickers and magnets with a 3D effect,
• thin bookmarks and similar flat products.

The surface remains flexible after curing, which is the main difference compared to classic "hard" doming resins. This allows it to better withstand bending and everyday use.

Advantages of ELASTIC 3-18-200 UV++

• flexible, elastic resin – does not break after curing, but springs back,
• low / medium viscosity – spreads well and creates a smooth surface,
• clear and transparent – preserves the graphics and colors of the substrate,
• UV++ maximum protection – higher resistance to UV radiation,
• self-leveling – the surface levels into a smooth, domed layer.

Properties and parameters of the resin

• type: clear, transparent epoxy resin for doming,
• consistency: medium viscosity, approx. 200 mPa·s (for comparison: 300 mPa·s = extra low viscosity, 9000 mPa·s = extra high viscosity),
• composition: two-component resin – component A (resin), component B (hardener),
• hardness after curing: approx. 60 Shore A – elastic, flexible,
• final hardness: approx. 70 Shore A after complete curing,
• weight mixing ratio: 1 : 1,
• UV stability: UV++ maximum protection,
• self-leveling behavior – it spreads itself into a smooth surface,
• workability at 23 °C: approx. 45 minutes,
• volume mixed at once: up to 1 liter – however, it is necessary to process it in the shortest possible time,
• Curing time: 18–24 hours (depending on ambient temperature and amount of material being cast).

Pigmentation and Colouring

• for transparent coloring use appropriate resin dyes,
• Always make sure that the amount of pigment or paint added does not exceed the manufacturer's recommended proportion - too much paint can affect curing and the resulting flexibility.

Packaging:
The stated weight is the sum of component A + component B.

Notes and recommended processing conditions

• processing temperature (mixing, pouring) must not drop below 20 °C,
• during curing, avoid temperature fluctuations – they can negatively affect the final surface and properties,
• mixing ratio of components A + B is by weight – we do not recommend volumetric measurement, both components must be weighed precisely.

Safety information

The substance mixture is classified as hazardous (EC) No. 1272/2008

Component A
Irritating to skin.
Causes serious eye irritation.
May cause an allergic reaction.
Harmful to aquatic life,
with long lasting effects.
List of standard hazard statements
H315 Causes skin irritation.
H317 May cause an allergic skin reaction.
H319 Causes serious eye irritation.
H411 Toxic to aquatic life,
with long lasting effects.
List of safety instructions
P101 If medical advice is needed, have product container or label at hand
or label at hand.
P102 Keep out of reach of children.
P264 After handling, wash hands and
affected body parts thoroughly.
P273 Avoid release to the environment.
P280 Wear protective gloves.
P333+P313 If skin irritation or rash occurs:
Get medical advice/attention.
P337+P313 If eye irritation persists:
Get medical advice/attention.

Component B
Irritating to skin.
Causes severe skin burns and eye damage.
May cause an allergic reaction.
Harmful if swallowed or if inhaled.
Harmful to aquatic life,
with long lasting effects.
List of standard hazard statements
H302 Harmful if swallowed.
H314 Causes severe skin burns and eye damage.
H317 May cause an allergic skin reaction.
H318 Causes serious eye damage.
H412 Harmful to aquatic life,
with long lasting effects.
H302+H332 Harmful if swallowed or
if inhaled.
List of safety instructions
P101 If medical advice is needed, have product container or label at hand
or label at hand.
P102 Keep out of reach of children.
P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
P280 Wear protective gloves/protective clothing/eye protection/face protection.
P273 Avoid release to the environment.
P301+P330+P331 IF SWALLOWED: Rinse mouth.
Do NOT induce vomiting.
P303+P361+P353 IF ON SKIN (or hair): Take off immediately all
contaminated clothing. Rinse skin with water or shower.
P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact
lenses, if present and easy to do. Continue rinsing.
P310 Immediately call a doctor. Rinse skin with water or shower.
P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes
rinse with water. Remove contact
lenses, if present and easy to remove.
Continue rinsing.
P310 Immediately call a doctor.
P501 Dispose of contents/container by handing over to an authorised person
for waste disposal or
return to the supplier.
